激光氙灯规格怎么量

信息编辑:常州镭烁光电 更新时间:2015-08-07 09:33:18 点击数:

激光氙灯规格怎么量

常州镭烁光电专业销售激光氙灯,激光氙灯管,激光进口氙灯,激光切割机氙灯,主要品牌有:大族、联赢、米亚基等。

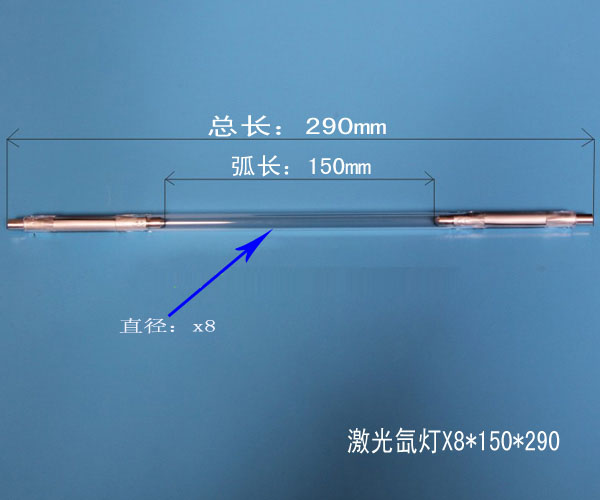

例如:X8*140*280/5 单位:(mm)(X)代表:氙灯 (8)代表:灯管外径 (140)代表:氙灯弧长 (280)(5)代表:灯管电极头直径。常见的型号有:

X5×70×150                                         X 7×70×150                             X 8×90×210                                   X 8×150×300
X 5×75×140                                      X 7×70×250                              X 8×90×220                                    X 8×170×310
X 5×75×170                                       X 7×75×188                             X 8×90×240                                    X 8×170×315
X 6.5×37×124                                   X 7×80×166                              X 8×100×210                                X 8×170×365
X 6.5×50×120                                   X 7×85×186                               X 8×100×220                               X 8×180×330
X 6.5×70×140                                   X 7×185×198                             X 8×100×230                              X 9×70×150
X6.5×70×150                                   X 7×90×190                                X 8×100×250                                X 9×90×240
X6.5×75×180                                   X 7×100×176                             X 8×100×270                                X 9×100×210
X6.5×80×166                                   X 7×100×186                              X 8×100×288                               X 9×120×270
X6.5×100×176                      X 7×100×210                              X 8×110×240                               X 9×125×256
X 6.5×110×260                     X 7×100×230                              X 8×120×240                               X 9×130×245/
X 7×45×110                                   X 7×100×288                               X 8×120×260                              X 9×130×260/5
X 7×50×120                                    X 7×120×250                              X 8×120×264                             X 9×130×264/5
X 7×50×125                                   X 7×120×270                               X 8×120×270                              X 9×130×264/6
X 7×50×136                                   X 8×60×260                                 X 8×125×270                              X 9×130×270/5
X7×60×120                                     X 8×67×180                                X 8×130×270                              X 9×140×280/5
X7×65×140                                     X 8×80×202                                 X 8×140×280                             X 9×150×280/5
X7×65×133                                    X 8×80×220                                 X 8×150×290                              X 9×150×280/6
X7×65×150                                     X 8×90×200                                X 8×150×297                              X 9×150×290/5



激光氙灯体管壁材料均为滤紫外石英管,可以在电极接头两端焊接电线。
